規格型號：13512448
頻率：25M
尺寸：5032mm
PDF
產品描述：7A25000007晶振,TXC無源晶體諧振器,5032陶瓷貼片晶振,5032封裝的標準化尺寸使其能直接替換同規格其他品牌晶振,無需調整電路布局,降低設備維護與升級成本,廣泛適用于智能電視,路由器,工業傳感器等對封裝適配性與生產效...

7A25000007晶振,TXC無源晶體諧振器,5032陶瓷貼片晶振
TXC品牌7A25000007晶振,憑借25.000MHz高頻特性與無源設計,靈活適配多領域應用:在消費電子領域,可為智能機頂盒,藍牙音箱提供穩定時鐘,保障音視頻同步與無線通信性能,在工業控制領域,能滿足小型PLC(可編程邏輯控制器),智能儀表的時鐘需求,確?？刂浦噶罹珳蕡绦信c數據實時采集,在汽車電子輔助設備(如車載充電器,行車記錄儀)中,5032貼片晶振封裝的抗振動性能可耐受車輛行駛中的顛簸,寬溫特性適配車內溫度變化.此外,晶振符合RoHS,REACH國際環保標準,支持無鉛焊接,滿足不同地區環保法規要求,拓寬應用范圍.

7A25000007晶振,TXC無源晶體諧振器,5032陶瓷貼片晶振

原廠型號 Originalmodel：	7A25000007	品牌brand：	臺灣TXC晶振

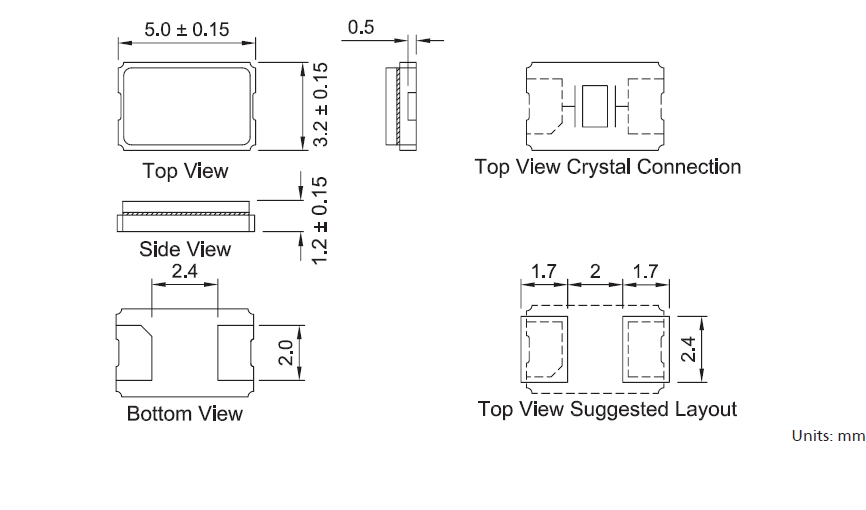

型號名稱 Modelname：	7A	Size/Dimension尺寸	5032mm
Type系列：	MHz Crystal	高度PackageHeight：	1.2mm
頻率 frequency：	25M	溫度OperatingTemperature	-40+85℃
Frequency Stability頻率穩定度	-	腳位Termination：	2Pad
frequencytolerance頻率容差	20PPm	封裝類型PackageType：	2-smd
Loadcapacitance 負載電容	-	最小包裝數MPQ：	1000

7A25000007晶振,TXC無源晶體諧振器,5032陶瓷貼片晶振

7XZ-32.768KBE-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS
7Z-38.400MBG-T	TXC CORPORATION	7Z	TCXO	38.4 MHz	Clipped Sine Wave
7Z-26.000MBG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave
CX-100.000MBE-T	TXC CORPORATION	CX	XO (Standard)	100 MHz	HCSL
7X-50.000MBE-T	TXC CORPORATION	7X	XO (Standard)	50 MHz	CMOS
7C-25.000MBE-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS
7C-40.000MBE-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS
8W-24.000MBE-T	TXC CORPORATION	8W	XO (Standard)	24 MHz	CMOS
7C-25.000MCB-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS
7C-26.000MBB-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS
7C-28.63636MBB-T	TXC CORPORATION	7C	XO (Standard)	28.63636 MHz	CMOS
7X-19.200MBA-T	TXC CORPORATION	7X	XO (Standard)	19.2 MHz	CMOS
8WE-33.333MBM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)
7X-26.000MBA-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS
8WE-24.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)
7X-26.000MBB-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS
7X-48.000MBB-T	TXC CORPORATION	7X	XO (Standard)	48 MHz	CMOS
AU-12.288MBE-T	TXC CORPORATION	AU	XO (Standard)	12.288 MHz	CMOS
AU-24.000MBE-T	TXC CORPORATION	AU	XO (Standard)	24 MHz	CMOS
AU-50.000MBE-T	TXC CORPORATION	AU	XO (Standard)	50 MHz	CMOS
7C-26.000MBA-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS
7C-25.000MBA-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS
BX-100.000MBE-T	TXC CORPORATION	BX	XO (Standard)	100 MHz	HCSL
7N-20.000MBP-T	TXC CORPORATION	7N	TCXO	20 MHz	CMOS
7N-12.800MBP-T	TXC CORPORATION	7N	TCXO	12.8 MHz	CMOS
7X-25.000MBE-T	TXC CORPORATION	7X	XO (Standard)	25 MHz	CMOS
7C-4.000MBB-T	TXC CORPORATION	7C	XO (Standard)	4 MHz	CMOS
8WE-25.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	25 MHz	CMOS (Low EMI)
8WE-38.400MDM-T	TXC CORPORATION	8WE	XO (Standard)	38.4 MHz	CMOS (Low EMI)
8NE-25.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)
8WE-24.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)
AU-25.000MBE-T	TXC CORPORATION	AU	XO (Standard)	25 MHz	CMOS
AU-26.000MBE-T	TXC CORPORATION	AU	XO (Standard)	26 MHz	CMOS
7Z-26.000MDS-T	TXC CORPORATION	7Z	VCTCXO	26 MHz	Clipped Sine Wave
7Z-26.000MDG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave
BR-61.4400MBE-T	TXC CORPORATION	BR	VCXO	61.44 MHz	CMOS
8WE-33.333MDM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)
8NE-24.576MDM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)
8WE-30.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	30 MHz	CMOS (Low EMI)
8NE-24.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	24 MHz	CMOS (Low EMI)
8WE-27.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	27 MHz	CMOS (Low EMI)
TD-7.3728MBD-T	TXC CORPORATION	TD	XO (Standard)	7.3728 MHz	CMOS
7XZ-32.768KBA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS
7XZ-32.768KDA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS
7W-36.000MBB-T	TXC CORPORATION	7W	XO (Standard)	36 MHz	CMOS
8NE-25.000MDM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)
7X-38.400MBE-T	TXC CORPORATION	7X	XO (Standard)	38.4 MHz	CMOS
7W-10.000MBE-T	TXC CORPORATION	7W	XO (Standard)	10 MHz	CMOS
7X-30.000MBE-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS
7X-26.000MBE-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS
7C-50.000MBE-T	TXC CORPORATION	7C	XO (Standard)	50 MHz	CMOS
8W-26.000MBE-T	TXC CORPORATION	8W	XO (Standard)	26 MHz	CMOS
8W-13.000MBE-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS
7X-30.000MBB-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS
8W-20.000MBE-T	TXC CORPORATION	8W	XO (Standard)	20 MHz	CMOS
7C-40.000MCB-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS
7C-24.576MBA-T	TXC CORPORATION	7C	XO (Standard)	24.576 MHz	CMOS
8NE-24.576MBM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)
8WE-20.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	20 MHz	CMOS (Low EMI)
8NE-27.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	27 MHz	CMOS (Low EMI)
